STABLE PLASTIC TOWER SPACER
Four-Legged Tower Spacer Supplier in the UAE
Highly stable plastic tower spacer for compatible precast and on-site concrete reinforcement in vertical and horizontal applications.
Jetons Four-Legged Spacer JT 0064, also described as a Tower Spacer, is a modified plastic chair spacer for precast and on-site concrete. Its four-leg profile is designed for stability and for compatible vertical or horizontal reinforcement.
DATA SHEET REFERENCE
Four-Legged Spacer
JT 0064 | 20–60 mm cover | 6–20 mm steel diameter | Plastic
Product Family
Concrete Spacers & Construction Accessories
Data Sheet
JT 0064
Listed Range
20–60 mm cover | 6–20 mm steel diameter | Plastic
Primary Function
Supports compatible vertical and horizontal reinforcement at the required cover.
DIRECT PRODUCT ANSWER
What Is Four-Legged Tower Spacer?
Direct answer: Four-Legged Spacer JT 0064 lists JFLS20, JFLS30, JFLS40, JFLS50 and JFLS60, providing 20–60 mm concrete cover for 6–20 mm steel diameter.
Product Function
Supports compatible vertical and horizontal reinforcement at the required cover.
Data Sheet Reference
JT 0064
Listed Product Range
20–60 mm cover | 6–20 mm steel diameter | Plastic
Quotation Basis
Select the listed model, confirm quantity, UAE project location and required date.

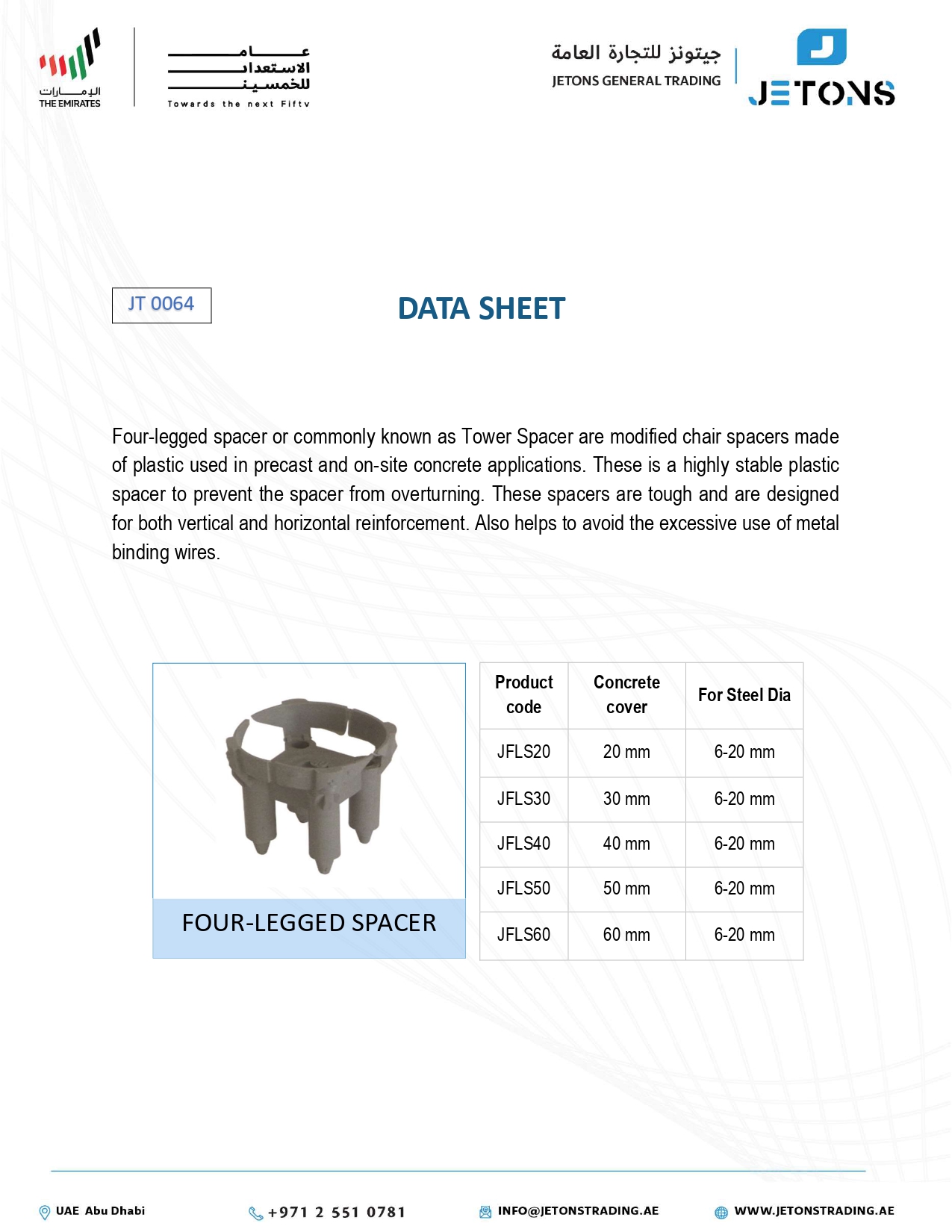

Original Jetons JT 0064 data sheet supplied by the user. Click the sheet to open the full-size image.
JT 0064 | TECHNICAL DATA
Request a quotation for this product.
Jetons Four-Legged Spacer JT 0064, also described as a Tower Spacer, is a modified plastic chair spacer for precast and on-site concrete. Its four-leg profile is designed for stability and for compatible vertical or horizontal reinforcement.
Exact Jetons Data Sheet Embedded
| Product Code | Concrete Cover | For Steel Dia |
|---|---|---|
| JFLS20 | 20 mm | 6–20 mm |
| JFLS30 | 30 mm | 6–20 mm |
| JFLS40 | 40 mm | 6–20 mm |
| JFLS50 | 50 mm | 6–20 mm |
| JFLS60 | 60 mm | 6–20 mm |
- Select the required product code or model from the data sheet.
- State the required quantity and intended application.
- Provide the UAE project location and required delivery date.
- Attach any consultant, client or project-specific requirement.
TYPICAL APPLICATIONS
Where Four-Legged Tower Spacer May Be Used
These applications follow the function described on JT 0064. Final installation must follow the approved drawing, method statement and project requirements.
APPLICATION 01
Precast concrete reinforcement
Confirm the selected JT 0064 model and approved installation detail.
APPLICATION 02
On-site concrete reinforcement
Confirm the selected JT 0064 model and approved installation detail.
APPLICATION 03
Vertical reinforcement support
Confirm the selected JT 0064 model and approved installation detail.
APPLICATION 04
Horizontal reinforcement support
Confirm the selected JT 0064 model and approved installation detail.
APPLICATION 05
Stable chair-spacer applications
Confirm the selected JT 0064 model and approved installation detail.
APPLICATION 06
Reduced metal-binding-wire requirements
Confirm the selected JT 0064 model and approved installation detail.
PRODUCT SELECTION GUIDE
How Do You Select the Correct Four-Legged Spacer?
Direct answer: Start with the model and dimensions listed on JT 0064, then confirm application, quantity and project requirements.
- Choose JFLS20–JFLS60 according to the approved 20–60 mm cover.
- JT 0064 lists suitability for 6–20 mm steel diameter.
- Confirm whether the spacer supports vertical or horizontal reinforcement.
- Verify the four-legged profile is stable on the approved supporting surface.
- Confirm the installation method and any reduction in binding-wire use.
- Calculate the approved spacer distribution and required order quantity.
Concrete cover
Choose JFLS20–JFLS60 according to the approved 20–60 mm cover.
Steel diameter
JT 0064 lists suitability for 6–20 mm steel diameter.
Orientation
Confirm whether the spacer supports vertical or horizontal reinforcement.
Base stability
Verify the four-legged profile is stable on the approved supporting surface.
Binding arrangement
Confirm the installation method and any reduction in binding-wire use.
Quantity
Calculate the approved spacer distribution and required order quantity.
TECHNICAL & PROCUREMENT CHECKS
Confirm the Listed Model and Installation Interface
Use the exact data sheet together with the approved project drawing, quantity and installation method before order release.
Cover Height
Match the JFLS model to the approved 20–60 mm cover.
Steel Compatibility
Use with compatible 6–20 mm steel diameter.
Tower Stability
Confirm the four-legged base is stable before concrete placement.
Orientation
Verify suitability for the approved vertical or horizontal arrangement.
COMPARE THE RANGE
Compare All Ten Spacer & Construction Accessory Products
Use the Jetons data-sheet reference and primary function to identify the correct product page.
| Product | Data Sheet | Primary Function | Key Listed Range |
|---|---|---|---|
| Wheel Spacer | JT 0060 | Maintains concrete cover for compatible vertical precast reinforcement. | 20–50 mm cover | 6–18 mm steel bar | 5 models |
| Clip Spacer | JT 0061 | Centralizes compatible steel reinforcement and maintains concrete cover. | 20–75 mm cover | 6–18 mm steel bar | 6 models |
| Shim Pads | JT 0062 | Provides controlled packing and levelling during precast-element erection. | 70 × 70 mm | 2, 3, 5 or 10 mm thick | Polymer |
| Hollow Core Cap | JT 0063 | Stops grout or mixture entering compatible hollow-core slab voids. | 6 slab-size options | 100–600 nos packing |
| Four-Legged Spacer | JT 0064 | Supports compatible vertical and horizontal reinforcement at the required cover. | Current page. 20–60 mm cover | 6–20 mm steel diameter | Plastic |
| Pile Cage Spacer | JT 0065 | Maintains concrete cover around compatible pile reinforcement cages. | 75 or 100 mm cover | 3 models | 100 nos packing |
| Chamfer | JT 0066 | Forms chamfered concrete edges and angled groove lines. | 10, 15, 20 or 25 mm profile | 2 m length | Plastic |
| Roof Tile Spacer | JT 0067 | Maintains a raised space beneath compatible stones, tiles or slabs. | 13 or 19 mm height | 150 mm diameter | 2 models |
| Rebar Cap | JT 0068 | Covers compatible exposed horizontal rebar ends as a reusable site accessory. | 8–16 mm or 16–32 mm steel bar | Reusable | Yellow |
| Plastic Welding Rod | JT 0069 | Binds compatible thermoplastic components during plastic-welding work. | PE & PP | 3, 4 or 5 mm | Round | 2 kg coil |
UAE-WIDE PRODUCT COORDINATION
Four-Legged Spacer Supply Across the UAE
Confirm the JT 0064 model, quantity, destination and required date so product availability and delivery can be reviewed.
Abu Dhabi & Al Ain
Project and bulk enquiries with delivery sequencing, access and receiving requirements.
Dubai, Sharjah & Ajman
Coordinate model, quantity, delivery date, route and project documentation.
RAK, Fujairah & Umm Al Quwain
Confirm location, programme, quantity and any remote-access requirements.
JETONS TRADING SUPPORT
From Data-Sheet Selection to Delivery
The sourcing route begins with the exact Jetons model and ends with confirmed quantity, availability and UAE delivery conditions.
Select Model
Choose the required code from JT 0064.
Confirm Application
Provide the installation interface, drawing or approved project detail.
Confirm Quantity
State the required quantity, packing needs and delivery date.
Coordinate Delivery
Confirm UAE location, receiving contact, access and programme.
PRICE & QUOTATION GUIDANCE
What Information Is Needed to Price Four-Legged Spacer?
Use JT 0064 to select the product code, then provide the project information below.
Product Information
- Jetons data sheet: JT 0064
- Required product code or model
- Required quantity and packing
- Intended application and installation detail
- Drawing, BOQ, sample or consultant requirement
Project Information
- Project name and UAE location
- Required delivery date and programme
- Receiving and site-access conditions
- Client, consultant or authority requirement
- Sample or technical-submittal requirement
What affects the price?
Pricing can depend on the selected data-sheet model, order quantity, packing, colour or MOQ requirements where applicable, sourcing route, UAE delivery location and programme.
FOUR-LEGGED SPACER FAQ
Frequently Asked Questions
Direct answers based on the exact Jetons JT 0064 data sheet.
What is Four-Legged Spacer?
Jetons Four-Legged Spacer JT 0064, also described as a Tower Spacer, is a modified plastic chair spacer for precast and on-site concrete. Its four-leg profile is designed for stability and for compatible vertical or horizontal reinforcement.
What models or product codes are listed?
JT 0064 lists JFLS20, JFLS30, JFLS40, JFLS50 and JFLS60 for 20, 30, 40, 50 and 60 mm concrete cover.
What material or product type is shown?
JT 0064 identifies the Four-Legged or Tower Spacer as plastic.
Is the original Jetons data sheet included?
Yes. The exact JT 0064 data-sheet image supplied by the user is embedded directly in Section 03.
Can I request a specific model?
Yes. Select the required code from JT 0064 and include it in the quotation request.
Can Jetons coordinate supply across the UAE?
Provide the model, quantity, UAE project location and required date so availability and logistics can be reviewed.
What affects the product price?
Price can vary with the selected model, quantity, packing, colour or MOQ requirement, sourcing route and delivery programme.
What should I send for a quotation?
Send the data-sheet model, required quantity, intended application, project location, required date and applicable drawing or specification.
RELATED SPACERS & ACCESSORIES
Explore Related Jetons Trading Product Options
Compare the data-sheet reference, function and listed range before requesting a quotation.
START YOUR ENQUIRY
Need Four-Legged Spacer for a UAE Project?
Send the required JT 0064 model, quantity, project location and required delivery date.
