PRECAST CONCRETE BARRIER

Single-Side Permanent 3 m Concrete Barrier Supplier in the UAE

Permanent Single-Side Barrier Unit for Approved Infrastructure Layouts

The Single-Side Permanent 3 m is a precast concrete barrier unit used to serve approved permanent barrier layouts that require the listed single-side profile and 3 m model designation. It is identified by its single-side profile and the catalogue reference “3 m”.

“Single-side” describes a single-side barrier geometry defined by the approved drawing. The catalogue describes the unit as permanent, so structural fixing, foundation, joints and long-term interfaces must be resolved in the project design.

Jetons can coordinate product supply, UAE-wide delivery, lifting, installation, painting and traffic-management support according to the agreed project scope.

Request Price & Availability

View Technical Information

Available support: Product supply • UAE-wide delivery • Lifting and installation • Painting • Traffic-management coordination

Single-Side Permanent 3 m Concrete Barrier supplied for UAE road, traffic-management and infrastructure projects

PRODUCT PURPOSE

Permanent Single-Side Configuration for Approved Works

Confirm the exact dimensions, connections, fixing and system compatibility from the approved drawing.

Product Type

Precast concrete barrier unit

Profile

Single-side

Configuration

Permanent-use designation

Published Reference

SSPERMNT-3 • 3000 × 910 mm reference

DIRECT PRODUCT ANSWER

What Is a Single-Side Permanent 3 m Barrier?

The Single-Side Permanent 3 m is a precast concrete barrier unit used to serve approved permanent barrier layouts that require the listed single-side profile and 3 m model designation. It is identified by its single-side profile and the catalogue reference “3 m”.

Published Jetons reference: Printed product code SSPR MNT/910/240-420/3 and reference SSPERMNT-3; published dimensions 3,000 mm length, 910 mm height, 240 mm top width and 420 mm base width.

“Single-side” describes a single-side barrier geometry defined by the approved drawing. The catalogue describes the unit as permanent, so structural fixing, foundation, joints and long-term interfaces must be resolved in the project design.

The product should be selected from the approved barrier layout. Exact dimensions, adjoining units, connections or fixing, installation method and any required performance documentation must be checked before ordering.

Related buyer search terms: permanent concrete barrier, single-side road barrier, single-face permanent barrier, anchored barrier and fixed precast road barrier. These phrases can overlap in everyday procurement, but the approved model, profile, dimensions, connection and installed-system requirements determine technical suitability.

WHY THIS CONFIGURATION

Why Specify the Single-Side Permanent 3 m?

This catalogue model gives contractors, engineers and procurement teams a clear product entity for drawings, BOQs, technical submissions and commercial enquiries.

Permanent-use designation: clearly separates this model from temporary or freestanding catalogue options.
Single-side geometry: supports approved layouts requiring the listed profile along one side of the protected area.
3 m model designation: allows planned sequencing for a permanent barrier run.
Design coordination: requires anchoring, foundation, connection, drainage and interface details to be resolved before installation.
Coordinated execution: can be quoted with manufacturing, transport, lifting, installation and handover support.

Important: use this model only where the controlled project information requires its exact configuration.

TYPICAL APPLICATIONS

Where Is the Single-Side Permanent 3 m Used?

The following are typical project environments for review. The approved layout, system details and project specification remain the final basis for selection.

Permanent Road-Edge Layouts

May be reviewed for approved permanent road or infrastructure arrangements requiring this single-side profile.

Project Boundaries

Can support permanent separation between vehicle movement and restricted project areas where the design permits.

Municipal Infrastructure

May be considered for municipal, transport and public-realm works with confirmed structural and installation details.

Industrial Facilities

Can form part of permanent vehicle-control or asset-separation layouts within industrial and logistics sites.

Development Projects

May support approved permanent boundary, access or traffic-separation requirements in large developments.

Anchored or Fixed Systems

The foundation, anchoring, connection and drainage details must be taken from the approved project design.

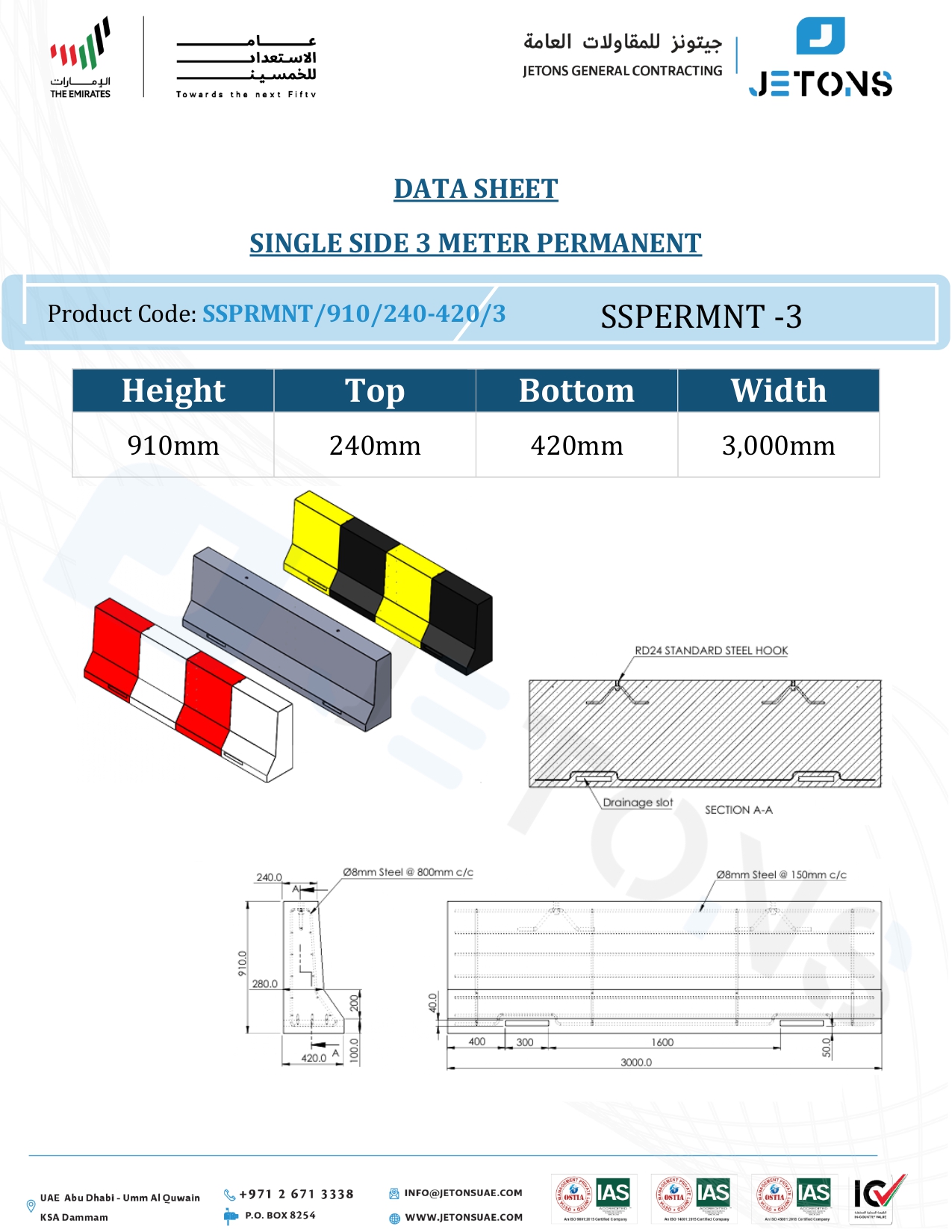

Single-Side Permanent 3 m concrete barrier technical data sheet

Data-sheet note: the current reference image for Single-Side Permanent 3 m is displayed here. Use the latest controlled drawing or PDF for procurement, production, technical submission and installation.

TECHNICAL INFORMATION

Published Product Reference and Buyer Checks

The current Jetons data sheet provides the published product reference. Searchable values are repeated below for buyers and technical teams, while the latest controlled drawing remains the governing document for production, approval and installation.

Product Name

Single-Side Permanent 3 m Concrete Barrier

Printed Product Code

SSPRMNT/910/240-420/3

Reference

SSPERMNT-3 as printed on the data sheet

Product Type

Permanent-use precast concrete barrier unit

Profile

Single-side / single-face profile

Published Length

3,000 mm

Published Height

910 mm

Published Top Width

240 mm

Published Base Width

420 mm

Published Features

Drainage-slot details and RD24 standard steel lifting hooks are illustrated

Reinforcement Reference

Ø8 steel at 150 mm centres and an additional Ø8 reference at 800 mm centres are illustrated; controlled reinforcement drawings govern

Permanent Installation

Confirm foundation, anchoring, fixing, joints, drainage, end treatment and long-term maintenance interfaces

Unit Weight

Confirm before transport, offloading and crane planning

Concrete / Finish

Confirm concrete grade, exposure, cover, surface finish, paint, logos and identification requirements

Performance Documentation

Confirm the required containment, structural and authority documentation for the exact installed arrangement

Drawing-control rule: use the published values for product identification and enquiry only. If any field, product code, table or illustration differs from a later approved drawing, the latest controlled project document governs.

Open Current Data Sheet

Request Controlled Drawing / PDF

PRODUCT SELECTION

Is the Single-Side Permanent 3 m Right for Your Project?

This model should be ordered only when the approved layout, BOQ or technical submission requires its exact profile and configuration.

Buyer check: identify the complete barrier system—not only the individual unit. Ends, transitions, connections, adjoining units, installation and performance requirements can affect suitability.

Discuss Product Suitability

1. Approved Barrier Layout

Confirm that the current drawing specifically identifies the Single-Side Permanent 3 m at the required location. Select the unit from controlled project information rather than a photograph or product name alone.

2. Adjoining Barrier Models

Identify the barrier units, transitions or end treatments placed on each side. Profiles, heights, connections and system details must be compatible.

3. Product-Specific Detail

Confirm the structural design, anchoring or foundation, joint, drainage, interface and installation tolerances required for the permanent arrangement.

4. Temporary or Permanent Use

State whether the arrangement is temporary or permanent. This may affect the fixing, anchoring, connection, finish, documentation and installation method.

5. Performance & Authority Requirements

Where the project requires a containment level, crash-test report, RTA or ITC requirement, consultant approval or another standard, request the verified documentation applicable to this exact model and installed arrangement.

6. Delivery, Lifting & Site Access

Confirm unit weight, lifting points, vehicle access, gate passes, permits, offloading scope, crane or Hiab requirements, storage area, placement sequence, working hours, painting and project markings.

RELATED BARRIER OPTIONS

How Does the Single-Side Permanent 3 m Compare With Related Models?

The correct product depends on the required profile, length, end or connection detail, application and complete approved barrier system.

Barrier Model

Main Difference

Typical Selection Reason

Single-Side Permanent 3 m

Single-side 3 m model designated for permanent use

Selected for an approved permanent layout with confirmed fixing and foundation details.

Single-Side Flat 940–2.4 m

Single-side flat model with 940 / 2.4 m designation

Selected where the approved drawing calls for this project-specific single-side geometry.

Single-Face 3 m With Loop

Single-face 3 m unit with a loop detail

Selected only when the approved drawing requires this exact loop configuration.

Single-Side Transition Barrier

Single-side transition unit

Selected where the approved barrier system must interface between compatible configurations.

Pole-Protection Barrier

Protective barrier arrangement for a pole or site asset

Selected according to the protected asset, clearances, layout and approved fixing details.

View All Concrete Barriers

Ask for Model Comparison

UAE-WIDE PROJECT SUPPORT

Supply, Delivery and Installation Options

Clients can request the Single-Side Permanent 3 m as a product-only order or combine it with transportation, lifting, installation, painting and traffic-management support.

Product Supply

Supply based on the confirmed Single-Side Permanent 3 m model, approved drawing, quantity, finish and project programme.

Explore Beam Concrete Work →

Transportation & Delivery

Vehicle allocation, load planning, route coordination, delivery sequencing and project-site access across the UAE.

View Transportation →

Lifting & Installation

Offloading, lifting, positioning, alignment, connection or fixing, supervision, inspection and handover support.

View Installation Services →

Traffic Management Support

Road closures, diversions, TMA support, signage, marshals and temporary work-zone control where required.

View Traffic Management →

UAE-WIDE SUPPLY, DELIVERY & INSTALLATION

Single-Side Permanent 3 m Barrier Support Across the Emirates

Jetons coordinates product supply and can review transportation, lifting, installation, painting and traffic-management requirements throughout the UAE. Final availability and scope depend on the approved model, quantity, programme and site conditions.

Abu Dhabi, Al Ain & Al Dhafra

Confirm route restrictions, gate passes, delivery windows, remote-site access, laydown space, crane or Hiab position and any ITC or project-specific traffic-management requirements.

Dubai, Sharjah & Ajman

Review urban access, timed deliveries, road permits, unloading restrictions, working-hour controls, storage, installation sequence and coordination with active road or development works.

RAK, Fujairah & Umm Al Quwain

Plan mountain, coastal, industrial or remote-site routes, vehicle access, unloading areas, ground-bearing conditions, lifting reach, storage supports and installation supervision.

Product-specific planning: Permanent installations require more than transport planning: confirm foundations, fixing details, drainage, survey control, installation tolerances, access and handover responsibilities before production and dispatch.

REQUEST A QUOTATION

Request Price, Availability and Technical Information

Send the available product and project information so our team can review the exact Single-Side Permanent 3 m requirement and the required supply, delivery or installation scope.

When the final drawing is not yet approved, share the latest BOQ, layout or data sheet and identify which information is still pending.

Request Price & Availability

Product & Technical Information

Product name: Single-Side Permanent 3 m
Official model or product code, if applicable
Required quantity
Approved drawing or latest data sheet
Adjoining barrier models and orientation
Required connection, fixing, loop, bolt or transition detail
Concrete, reinforcement or finish specification
Painting colours, logos and project markings
Required test, approval or technical-submission documents

Project, Delivery & Installation Information

Project name and location
Main contractor or project entity
Consultant or authority requirements
Required delivery date and sequence
Gate-pass, permit and working-hour requirements
Site-access and storage restrictions
Offloading and lifting responsibility
Supply only, delivery, installation or traffic-management scope

PRODUCT FAQ

Single-Side Permanent 3 m Barrier FAQs

These answers address common contractor, engineer and procurement questions before a technical review or quotation.

QUICK ANSWER

The Single-Side Permanent 3 m is a precast concrete barrier unit used to serve approved permanent barrier layouts that require the listed single-side profile and 3 m model designation. The approved data sheet must confirm dimensions, weight, reinforcement, connection or fixing details, lifting arrangements and any required performance documentation before procurement or installation.

What is a Single-Side Permanent 3 m Barrier?

It is a precast concrete barrier unit identified by its single-side profile and 3 m designation. Its purpose is to serve approved permanent barrier layouts that require the listed single-side profile and 3 m model designation. Exact dimensions and system details must be confirmed from the approved data sheet.

What makes this a permanent barrier model?

The live catalogue identifies it as “Permanent”. The exact permanent installation, foundation, anchoring and structural details must still be confirmed from the approved design.

Where can this barrier be used?

It may be reviewed for approved permanent road-edge, infrastructure, municipal, industrial and development-project layouts.

Does it require a foundation or anchoring?

That depends on the approved structural and project-specific design. Do not determine the fixing method from the product name alone.

Can it be used temporarily?

Use outside its permanent catalogue purpose should be considered only through a documented engineering and project review.

What technical information should be confirmed before ordering?

Confirm the latest data sheet, exact dimensions, unit weight, concrete and reinforcement requirements, connections or embedded details, lifting points, finish, painting, quantity and applicable performance documentation.

Does Jetons provide delivery and installation?

Yes. The quotation can include UAE-wide transportation, offloading, lifting, positioning, installation, supervision, painting and traffic-management support according to the agreed scope.

Can the product be delivered across the UAE?

Delivery can be coordinated for Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah, Al Ain and other UAE locations, subject to project access, permits, vehicle requirements and the confirmed programme.

What information is needed for pricing?

Provide the product name, quantity, approved drawing or latest data sheet, project location, required date, finish requirements, offloading scope, installation requirements and any consultant or authority specification.

Compare Related Concrete Barrier Models

Review related units when the approved layout requires a different face profile, length, connection, end treatment, transition or application.

REQUEST PRODUCT SUPPORT

Need a Single-Side Permanent 3 m Barrier?

Send your approved barrier layout, required quantity, project location, technical specification and delivery programme. Jetons will review the exact product requirement and the appropriate manufacturing, transportation, lifting, installation, painting and traffic-management scope.

Request a Quotation

Discuss Product Suitability
