UNDERGROUND UTILITY ACCESS STRUCTURE
Precast Utility Chamber Supplier in the UAE
Rectangular reinforced-concrete chamber for approved utility ducts, service connections, inspection and maintenance access

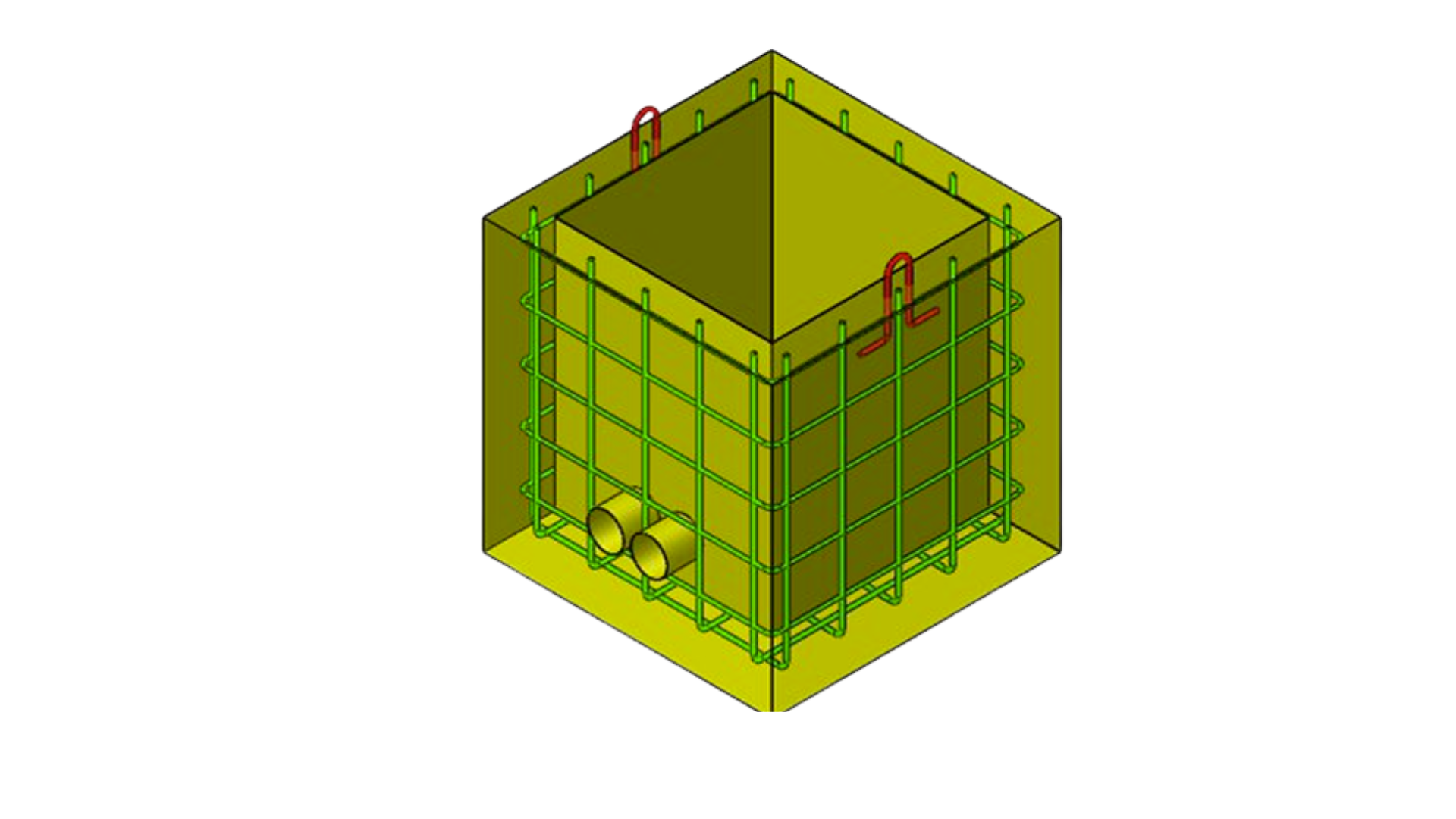

A precast utility chamber is a factory-manufactured reinforced-concrete enclosure used below ground to provide protected access to approved utility ducts, service connections, junctions or maintenance points.
Jetons can review standard and project-specific chamber requirements for UAE infrastructure works, including precast manufacture, delivery, lifting and installation where included in the confirmed scope.
CURRENT PRODUCT REFERENCE
Precast Utility Chamber
Jetons Data Sheet 51 – Chambers
Product Family
Manholes & utility chambers
Current Reference
Data Sheet 51
Selection Basis
Approved utility-network drawing
Available Scope
Supply, delivery & installation support
DIRECT PRODUCT ANSWER
What Is a Precast Utility Chamber?
Direct answer: A precast utility chamber is an underground concrete access structure manufactured off site and installed at a defined point in a utility network. It may accommodate approved ducts, pipes, cable routes, valves, connections or inspection access, depending on the civil and utility design. The chamber must be selected from the network function, internal space, openings, depth, access, loading, water-management and installation requirements—not from the product name alone.
Precast Utility Chamber
A broad underground access enclosure coordinated with approved ducts, pipes, connections, service interfaces and maintenance needs.
Inspection or Access Chamber
A related term emphasizing inspection and maintenance access. The approved dimensions and entry classification determine whether the terms are technically equivalent.
Manhole
Usually describes a network access structure and may imply personnel entry. A utility chamber should not automatically be called a manhole without confirming the approved function and clear dimensions.
Electrical Chamber or Utility Vault
A more specific chamber for an electrical network or equipment interface. Electrical clearances, ventilation, earthing and authority requirements must be reviewed separately.
Open original product page
SEARCHABLE TECHNICAL INFORMATION
Jetons Data Sheet 51 – Chambers
Important buyer checks are written below so the page can be understood without relying only on an image. Verify every project-specific value against the controlled documents.
TYPICAL PROJECT ENVIRONMENTS
Where Precast Utility Chamber May Be Used
These are common enquiry routes. Final suitability depends on the approved network design, technical specification, loading, access, environmental conditions and installation arrangement.
Telecom & Fibre Networks
Duct junctions, pulling points and maintenance access within approved telecommunications and data-network routes.
Power & Street-Lighting Interfaces
Civil chamber requirements serving approved cable routes, lighting circuits and related underground electrical infrastructure.
Water & Irrigation Services
Access around approved pipework, valves, service connections or irrigation-network interfaces.
Municipal Utility Corridors
Underground service routes within roads, public-realm works and coordinated municipal infrastructure.
Industrial Facilities
Project-specific chambers for approved services, process utilities and maintenance points in plants and yards.
Residential & Commercial Developments
Utility-distribution and service-access requirements within master-planned and building-development projects.
PRODUCT SELECTION GUIDE
How Do You Select the Correct Precast Utility Chamber?
Direct answer: Select the chamber from the approved network function, internal clear dimensions, depth, duct or pipe entries, access opening, structural loading, water-management requirements, embedded items and installation conditions.
- Confirm the network function
- Internal space and overall geometry
- Duct, pipe and service openings
- Access opening, frame and cover
- Structural and traffic loading
- Drainage and water ingress
Confirm the network function
Identify the utility owner, service type and exact purpose of the chamber: junction, pulling, connection, valve, inspection, equipment interface or another approved function.
Internal space and overall geometry
Provide clear internal length, width and depth, overall external dimensions, wall and slab thicknesses, finished levels and any neck or reducer arrangement.
Duct, pipe and service openings
Confirm the quantity, diameter, level and orientation of sleeves, pipes, ducts, knockouts and spare openings. Coordinate sealing and clearances before manufacture.
Access opening, frame and cover
Confirm the clear access opening, frame and cover material, finished level, surrounding pavement or landscape interface and whether personnel entry is intended.
Structural and traffic loading
Provide soil cover, surcharge, wheel or traffic loads, groundwater and equipment loads. Do not assume the product is traffic-rated from the image or general title.
Drainage and water ingress
Clarify groundwater, flood level, joints, waterproofing, drainage outlet, sump or pumping requirements and the party responsible for sealing interfaces.
Embedded items and internal fittings
Confirm steps, brackets, channels, plates, inserts, pipe supports, earthing provisions, lifting anchors and any other cast-in components.
Transport, lifting and installation
Confirm unit weight, lifting points, route access, crane or Hiab position, excavation readiness, bedding, backfill and installation sequence.
DESIGN & INTERFACE REVIEW
Coordinate the Complete Underground Structure
A precast unit performs only as part of the approved network, ground, access and installation arrangement. Confirm each interface before production.
Civil Geometry
Internal clear space, walls, base slab, top slab, neck, access opening and finished levels must match the approved civil drawing.
Network Entries
Pipes, ducts, sleeves and cable routes require coordinated sizes, levels, orientations, clearances and sealing details.
Access & Maintenance
The opening, cover, steps, working space and maintenance method must suit the approved access and safety requirements.
Ground & Surface Conditions
Burial depth, soil, groundwater, surcharge, traffic exposure, drainage and surrounding finishes affect the final design.
PRODUCT TERMINOLOGY
Compare Related Manhole and Chamber Terms
The approved purpose, geometry, access, internal arrangement and authority terminology determine the correct product. Related names should not be treated as automatically interchangeable.
| Product term | General role | When to review |
|---|---|---|
| Precast Utility Chamber | Rectangular or project-specific underground service enclosure | Review for utility ducts, connections, valves, junctions and maintenance access. |
| Cylindrical Precast Manhole | Circular access structure | Review where the approved drainage, sewerage or utility design requires cylindrical geometry. |
| Precast Concrete Manhole | Box-style or project-defined manhole | Review where the approved network requires a manhole with defined access, openings, invert or benching. |
| Electrical Chamber / Utility Vault | Electrical-network enclosure | Review where cable, equipment, clearances, ventilation, earthing or electrical-authority requirements apply. |
UAE-WIDE PROJECT SUPPORT
Precast Utility Chamber Supply Across the UAE
Delivery and installation planning depends on more than distance. Confirm route, permits, access, unit weights, excavation readiness, unloading and lifting conditions.
Abu Dhabi, Al Ain & Al Dhafra
Coordinate authority requirements, remote-site access, delivery routes, gate passes, truck turning space, lifting position and phased underground works.
Dubai, Sharjah, Ajman & Umm Al Quwain
Plan urban access, timed deliveries, route restrictions, excavation readiness, storage, offloading and interfaces with active infrastructure.
Ras Al Khaimah & Fujairah
Review industrial, mountain, coastal or remote-site routes, groundwater, ground condition, unloading areas and special installation requirements.
CONNECTED JETONS SUPPORT
From Technical Review to Site Placement
Clients can request product supply only or coordinate transport, lifting and installation where required and included in the confirmed scope.
Technical Review
Review drawings, data sheet, network function, geometry, openings, loading, materials, interfaces and missing information.
Precast Manufacturing
Coordinate moulds, reinforcement, embedded items, casting, curing, identification, inspection and production sequence.
Transport & Delivery
Plan unit weights, vehicles, routes, permits, delivery windows, access, storage and unloading sequence.
Lifting & Installation
Coordinate excavation readiness, crane or Hiab access, rigging, bedding, alignment, joints, placement and handover when included.
PRICE & QUOTATION GUIDANCE
What Information Is Needed to Price Precast Utility Chamber?
Send the controlled technical and project information so the correct product, manufacturing method, delivery and installation scope can be assessed.
Technical Information
- Approved plans, sections and revision status
- Network type and product function
- Internal and external dimensions and depth
- Openings, levels, orientations and internal arrangement
- Concrete, reinforcement, loading and durability
- Top access, frame, cover, joints and water-management requirements
Project & Scope Information
- Required quantity and production sequence
- Project name and UAE location
- Delivery dates and site working hours
- Route, gate passes and access restrictions
- Offloading, crane or Hiab and excavation readiness
- Installation, testing, inspection and handover scope
What affects the price?
Pricing can depend on unit geometry, concrete volume, reinforcement, openings, internal details, mould requirements, frames and covers, coatings, testing, quantity, transport distance, lifting equipment and installation scope. A drawing-based review is required for a reliable quotation.
PRECAST UTILITY CHAMBER FAQ
Frequently Asked Questions
These answers provide practical procurement guidance. Final selection, manufacture, network acceptance and installation must follow approved project information.
What is a precast utility chamber?
A precast utility chamber is a factory-manufactured reinforced-concrete enclosure installed below ground to provide protected access to approved utility ducts, pipes, connections, valves, cables or maintenance points. Final suitability depends on the network function, dimensions, openings, access, loading, water management and installation conditions.
What is the difference between a utility chamber and a manhole?
Utility chamber is a broad term for an underground service enclosure. Manhole usually emphasizes network access and may imply personnel entry. The approved function, clear dimensions, access classification and authority terminology determine the correct name.
Which Jetons data sheet applies to the utility chamber?
The current source page displays Jetons Data Sheet 51 – Chambers. Use the latest controlled drawing or technical submission for final dimensions, reinforcement, openings, loading and manufacture.
Can chamber dimensions and openings be customized?
Project-specific internal and external dimensions, wall and slab geometry, duct or pipe openings, sleeves, knockouts, access openings and embedded items can be reviewed when approved plans, sections and quantities are provided.
Are the frame and cover included?
Frame, cover, top slab, neck, clear opening and finished-level interface depend on the approved design and quotation scope. Confirm the cover type, load requirement and surrounding surface before ordering.
Is the chamber suitable for vehicle loading?
Vehicle or traffic suitability cannot be confirmed from the product name or image. Submit the approved load category, burial depth, surcharge, pavement condition and structural design.
Can the chamber be made watertight?
Watertightness depends on concrete, joints, penetrations, sealants, coatings, groundwater, installation and testing requirements. These must be specified and coordinated; a general chamber is not automatically watertight.
Can steps, brackets and embedded plates be included?
Cast-in steps, channels, brackets, plates, supports, inserts and lifting anchors can be reviewed when their approved locations, materials and loads are provided before manufacture.
Does Jetons provide delivery and installation?
Delivery, offloading, lifting and installation can be coordinated across the UAE when included in the confirmed quotation and subject to access, permits, excavation readiness and programme.
What affects the price of a precast utility chamber?
Price can depend on dimensions, concrete volume, reinforcement, openings, mould requirements, embedded items, covers, coatings, quantity, testing, delivery distance, lifting equipment and installation scope.
What information is required for a quotation?
Send approved plans and sections, utility type, dimensions, depth, openings, frame and cover details, loading, concrete and reinforcement requirements, quantity, project location, delivery programme and installation scope.
Can utility chambers be delivered throughout the UAE?
UAE-wide delivery can be planned for Abu Dhabi, Al Ain, Al Dhafra, Dubai, Sharjah, Ajman, Umm Al Quwain, Ras Al Khaimah and Fujairah, subject to unit size, quantity, route, permits, access and unloading arrangements.
RELATED UNDERGROUND PRODUCTS
Explore Related Jetons Precast Products
Use the approved application and technical drawing to choose the correct product family and avoid treating different underground structures as interchangeable.
START YOUR ENQUIRY
Need Precast Utility Chamber for a UAE Project?
Send the current drawing, network requirements, dimensions, openings, loading, quantity, project location, delivery programme and installation scope.
